Morphological and morphometrical study of the fore limb bone of common eland (Taurotragus oryx)

Document Type : Research Article


1 Department of Anatomy and Histology, Faculty of Veterinary Science, Bangladesh Agricultural University, Mymensingh-2202, Bangladesh.

2 Department of Anatomy and Histology, Faculty of Veterinary Science, Bangladesh Agricultural University, Mymensingh-2202, Bangladesh & Department of Biotechnology and Life Sciences, University of Insubria, Via J.H. Dunant, 3, 21100 Varese, Italy.

3 Department of Anatomy and Histology, Faculty of Veterinary Medicine & Animal Science, Bangabandhu Sheikh Mujibur Rahman Agricultural University, Salna, Gazipur, Bangladesh.

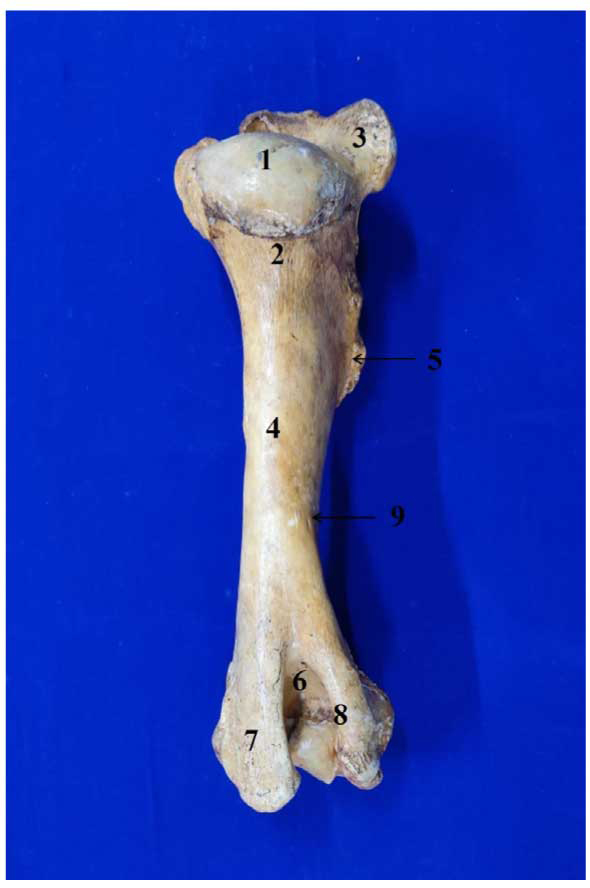

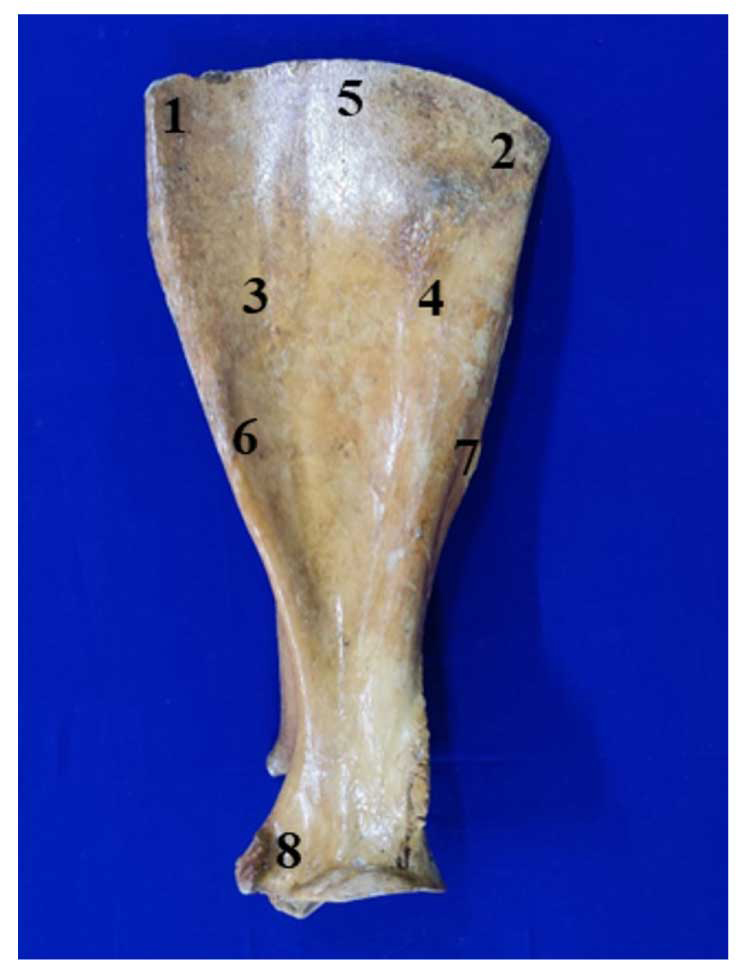

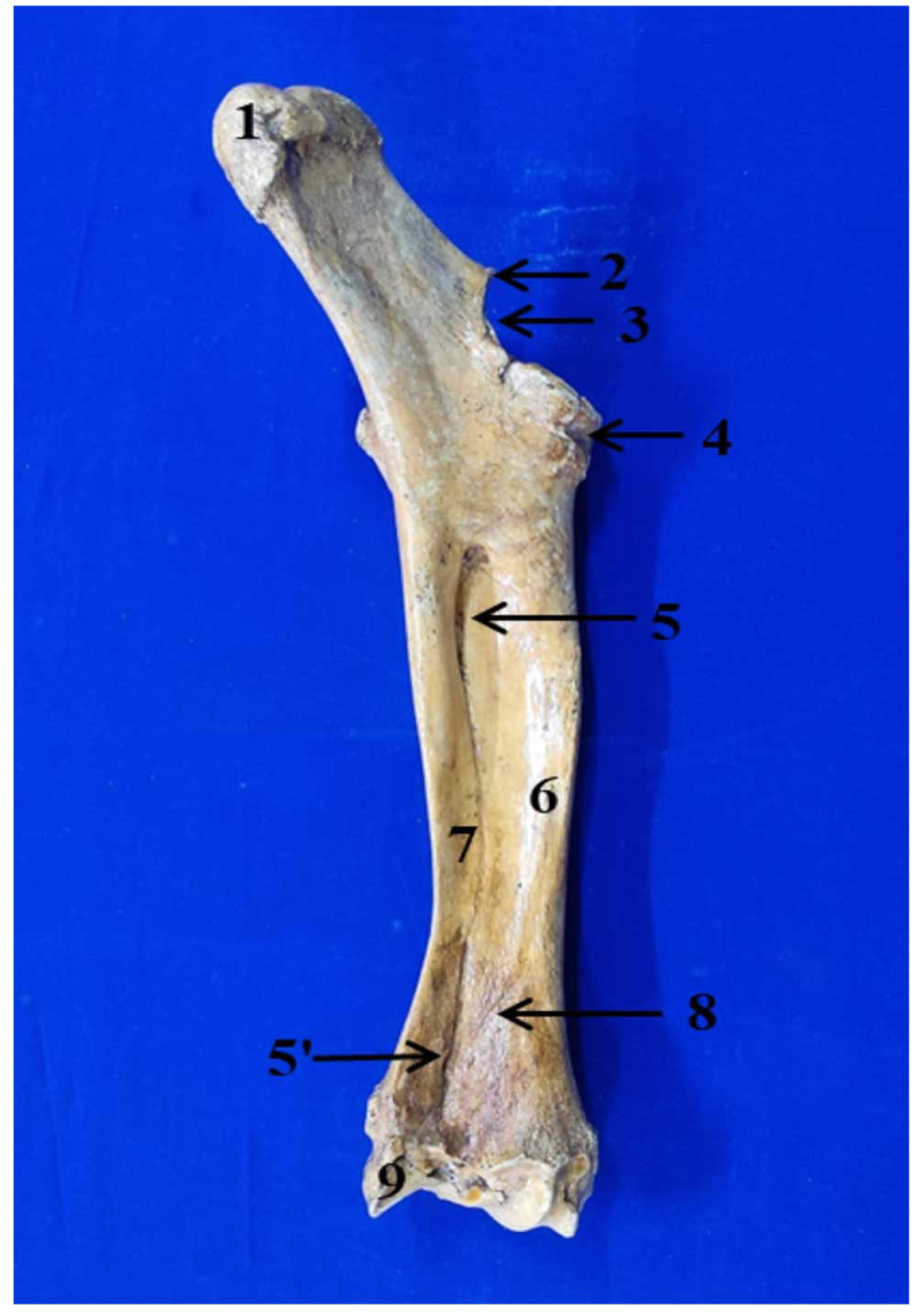

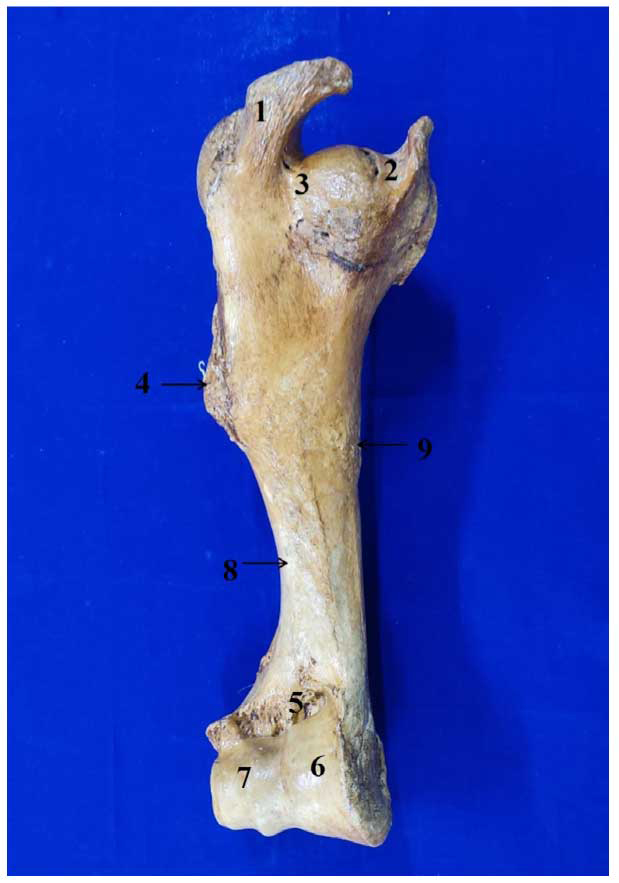

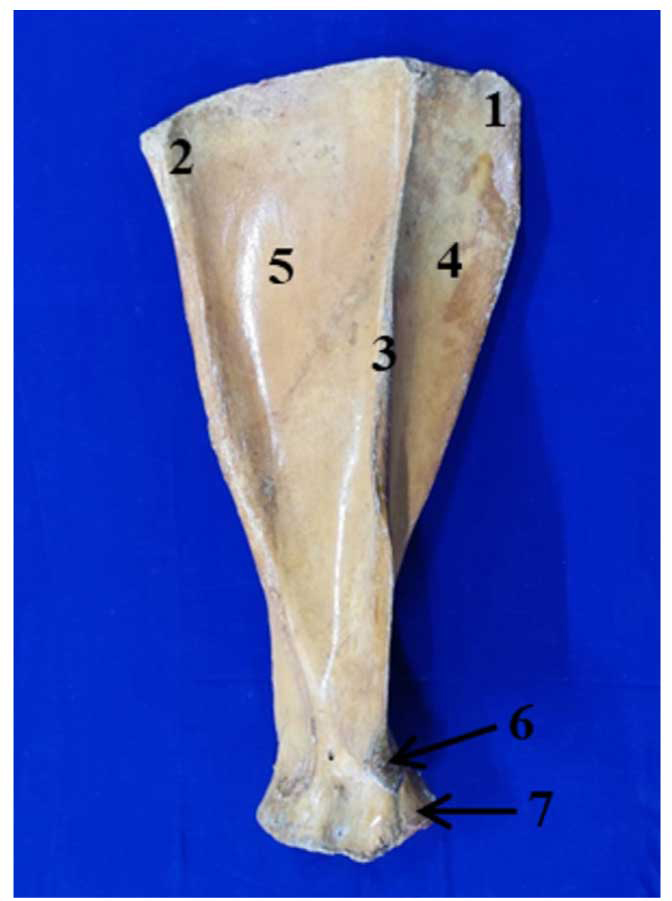

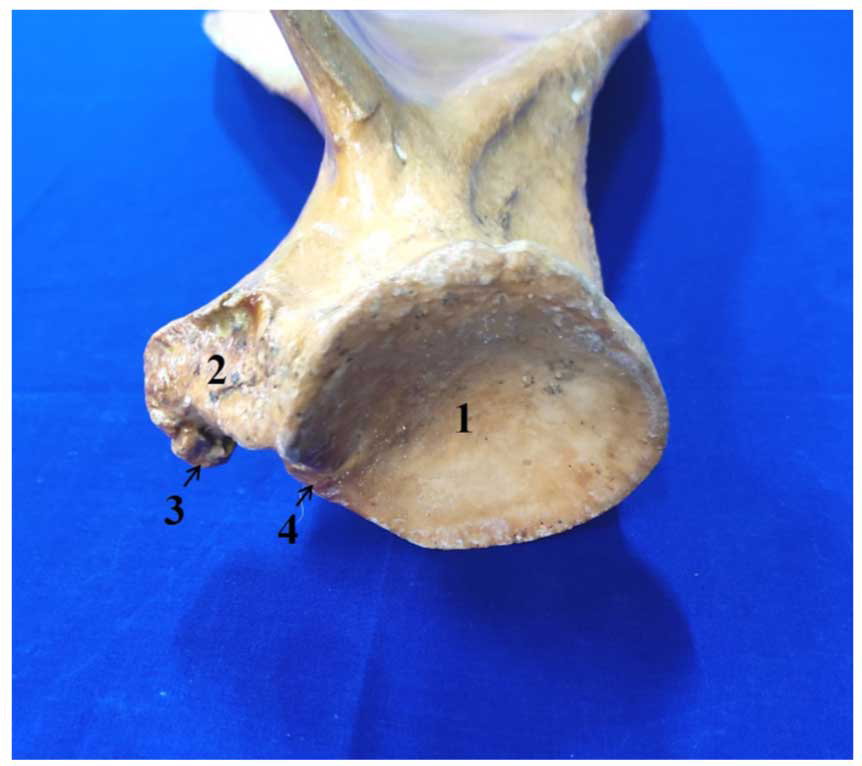

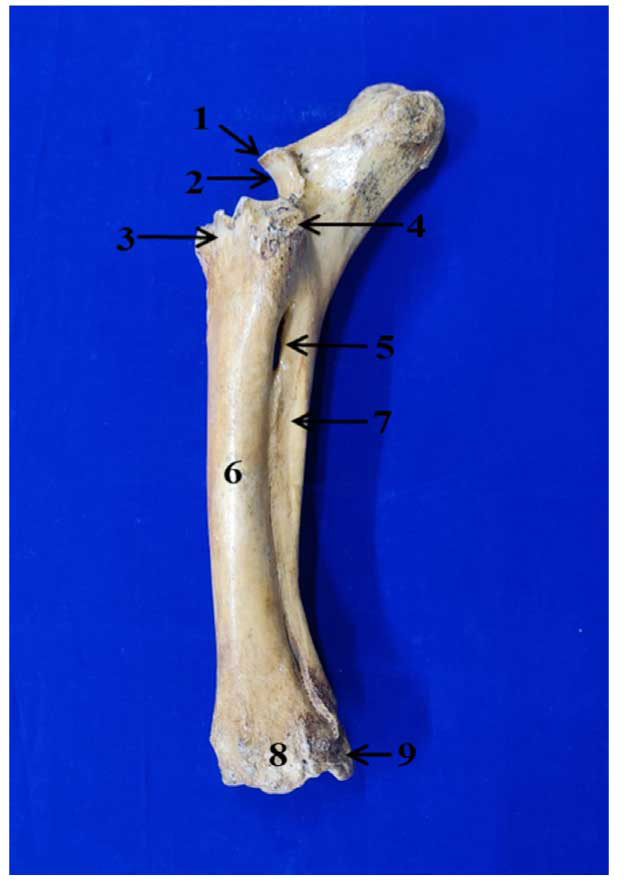

This research paper presents a comprehensive morphologic and morphometric analysis of the forelimb bones (scapula, humerus, radius, and ulna) of the common eland (Taurotragus oryx) that are facing the threat of extinction. The study aims to contribute essential anatomical and clinical data, as well as facilitate biomedical research and educational endeavors. Bone specimens sourced from the Bangladesh National Zoo, Dhaka, were subjected to a standard hot water maceration technique, followed by sun-drying and treatment with 5% hydrogen peroxide. The scapula displayed a distinct triangular flat shape with a well-developed spine, and demarcating supraspinous and infraspinous fossae. Scapular weights were recorded at 698 gm (right) and 718 gm (left). The humerus, a robust and elongated bone measuring an average of 35.9 cm, exhibited a compressed cylindrical diaphysis and expanded epiphyses, with the right humerus weighing 944 gm and the left, 1016 gm. Notably, the humeral shaft displayed distinct regional compressions and expansions. The radius, slightly oblique and broader than the ulna, demonstrated cranial-caudal flattening. In contrast, the ulna, the longest bone at an average of 41.6 cm in the forearm, displayed distinct anatomical features. These findings offer valuable insights for comparative anatomical investigations within this taxonomic group and hold significance for clinical applications and educational purposes.


Main Subjects

1.    Pappas LA. Taurotragus oryx. Mammalian Species, 2002. 689:1–5. Doi:10.1644/1545-1410(2002)689<0001:to>;2.
2.    Lewis JG. Game domestication for animal production in Kenya: shade behaviour and factors affecting the herding of eland, oryx, buffalo and zebu cattle.  The J Agric Sci. 1978 90(3): 587–595. Doi: 10.1017/S0021859600056124.
3.    Lightfoot CJPJ. Eland (Taurotragus oryx) as a ranching animal complementary to cattle in Rhodesia. J Rhod Agr. 1977; 74:47–120.
4.    Posselt J. The domestication of the Eland. Rhodesian J Agri R. 19631:81-87.
5.    Getty R (1975) General osteology The Anatomy of the Domestic Animals. Philadelphia & London. W. B. Saunders Company. 5th edn.
6.    Bemis WE, Hilton EJ, Brown B, Arrindell R, Richmond AM, Little CD, Nelso GJ (2004) Methods for preparing dry, partially articulated skeletons of osteichthyans, with notes on making Ridewood dissections of the cranial skeleton. Copeia, 3: 603–609. Doi:10.1643/CI-03-054R1.
7.    RK Ghosh. Primary Veterinary Anatomy. 2006 4th edn.
8.    Gofur M and Khan M. Development of a quick, economical and efficient method for preparation of skeleton of small animals and birds. Env. Sci. 2010; 2(7):13–7.
9.    Evans Hedla. Miller 's Anatomy of the Dog. Philadelphia,W. B. Saunders Company. 2013; 4th edn:177–96.
10.    Stark H, Fischer MS, Hunt A, Young F, Quinn R, Andrada E. A three-dimensional musculoskeletal model of the dog. Scie Rep. 2021; 11(1):1-13. Doi: 10.1038/s41598-021-90058-0.
11.    Reighard. Anatomy of the cat. Henry Holt and Company, New York, 1935; 62–76.
12.    Tomar MPS, Taluja JS, Vaish R, Shrivastav AB, Shahi A Sumbria D. Gross anatomy of scapula in Tiger (Panthera tigris). Ind J AnI Res. 2018; 52(4):547–50. Doi:10.18805/ijar.B-3252.
13.    Podhade DN, Shrivastava AB, Parmar ML, Vaish R, Lohkare AC, Jasutkar RK, Tiwari DK. Studies on characteristic features of patella of the leopard (Panthera pardus) as an aid in wildlife forensics. Royal Vet J of India. 2009; 5(1/2):39-40. URL:
14.    Jahan S, Sohel MSH & Rahman ML. Morphology and morphometric analysis of bones of the forelimb of giraffe (Giraffa camelopardalis). Bangladesh J Vet and Ani Sci. 2021; 9(1): 59–66.
15.    Onwuama KT, Salami SO, Kigir ES & Jaji AZ. Gross Anatomical Studies on the Hind Limb of the West African Giraffe (Giraffa camelopardalis peralta). Vete Medi Inte, 2021 .Doi:10.1155/2021/8818525.
16.    Hautier L, Stansfield FJ, Allen WT & Asher RJ. Skeletal development in the African elephant and ossification timing in placental mammals. Proc Royal Soc Bio Sci. 2012; 279(1736):2188-2195. Doi:10.1098/RSPB.2011.2481.
17.    Özkan ZE, Dýnç GAA. Investigations on the comparative gross anatomy of scapula, clavicula, skeleton brachii and skeleton antebrachii in rabbits (Oryctolagus cuniculus), guinea pigs (Cavia porcellus) and rats (Rattus norvegicus). Fýrat Uni J Heal Sci. 1997; 11:171–175.
18.    Hasan I AND Islam MR. Preparation of indigenous duck (Anas platyrhynchos) skeleton to enhance veterinary anatomy teaching. Asi J Med and Bio Res. 2019; 5(3):192–196. Doi:10.3329/AJMBR.V5I3.43587.
19.    Nzalak, JO, Eki, MM, Sulaiman, MH, Umosen, AD, Salami, SO, Maidawa, SM, & Ibe, CS. Gross anatomical studies of the bones of the thoracic limbs of the Lion (Panthera leo). J Vete Ana. 2010; 3(2):65-71. Doi:10.21608/JVA.2010.44901.
20.    Budras KD, Habel RE, Habel RE, Wunsche A, Buda S. Bovine Anatomy: An Illustrated Text. Schlütersche GmbH and Co. Hannover, Germany. 2003; 1st edn.
21.    Siddiqui MSI, Khan MZI, Moonmoon S, Islam MN, Jahan MR. Macro-anatomy of the bones of the forelimb of Black Bengal goat (Capra hircus). Bangladesh J. Vet. Med,.2008; 6(1):59-66. Doi:10.3329/BJVM.V6I1.1340.
22.    König HE AND Liebich H. Veterinary Anatomy of Domestic mammals’, in Textbook and colour Atlas. Schattauer, Stuttgart, Germany, 2004; 27–29.
23.    Smuts MM and Bezuidenhout AJ. Osteology of the pelvic limb of the African elephant (Loxodonta africana). The Onder J Vet Res. 1994; 61(1):51–66.
24.    Mcleod WM. Bovine Anatomy. Cornell University, Burgess Publishing Company. 1958; 2nd edn.
25.    Ahasan, A.S.M.L. Macroanatomía de los Huesos del Miembro Torácico de un Elefante Asiático (Elephas maximus). Int. J Morp. 2016; 34(3):909–17. Doi:10.4067/S0717-95022016000300016.
26.    Nazem MN, Sajjadian SM and Nakhaei A. Anatomy, functional anatomy and morphometrical study of forelimb column in Asiatic cheetah (Acinonyx jubatus venaticus). Italian J Anat and Embr. 2017; 122:157–72. Doi:10.13128/IJAE-22975.
